Hangzhou Qiwei Instrument Co., Ltd. yog ib qho ntawm cov tuam txhab ua lag luam thiab cov chaw muag khoom ntawm lub zog sib nqus stirrer hauv Suav teb. Nrog ib pab neeg tsim khoom, peb muaj peev xwm ua tau raws li qhov xav tau ntawm feem ntau ntawm peb cov neeg siv khoom. Txais tos rau kev lag luam wholesale bulk siab zog magnetic stirrer hauv Tshuag ntawm no los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.

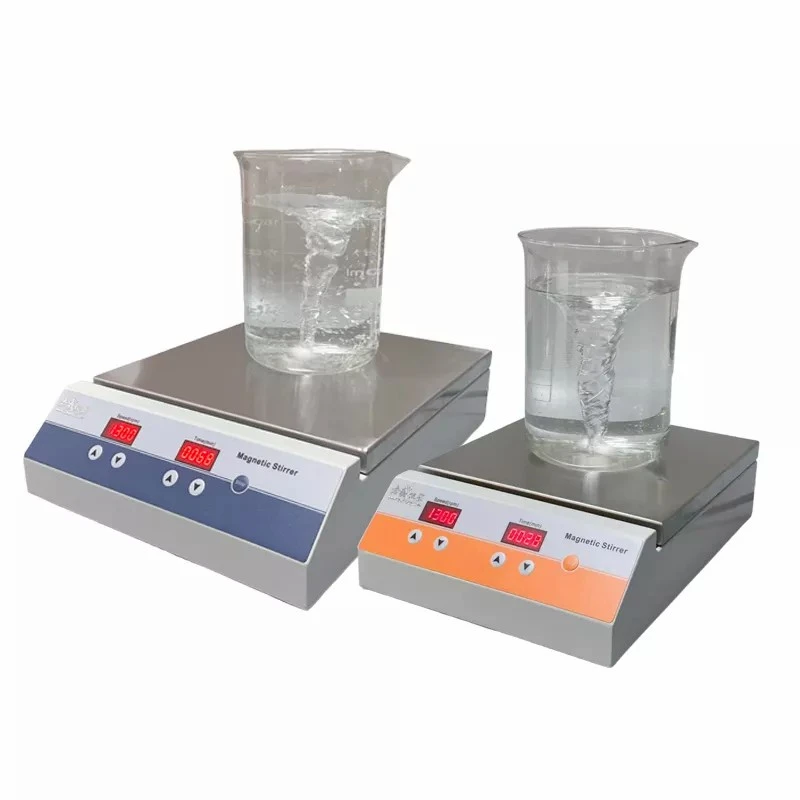

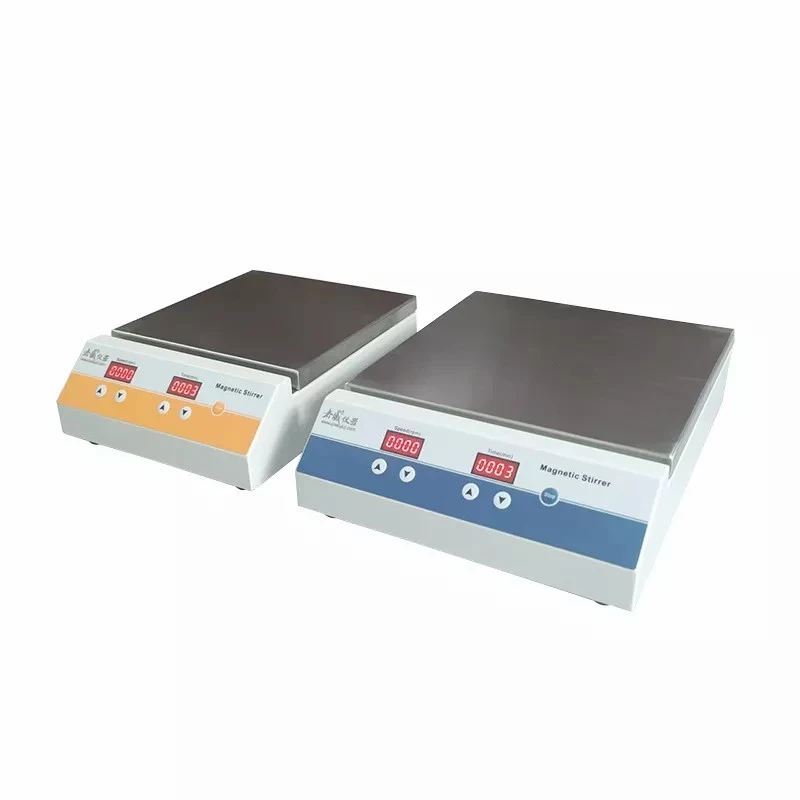

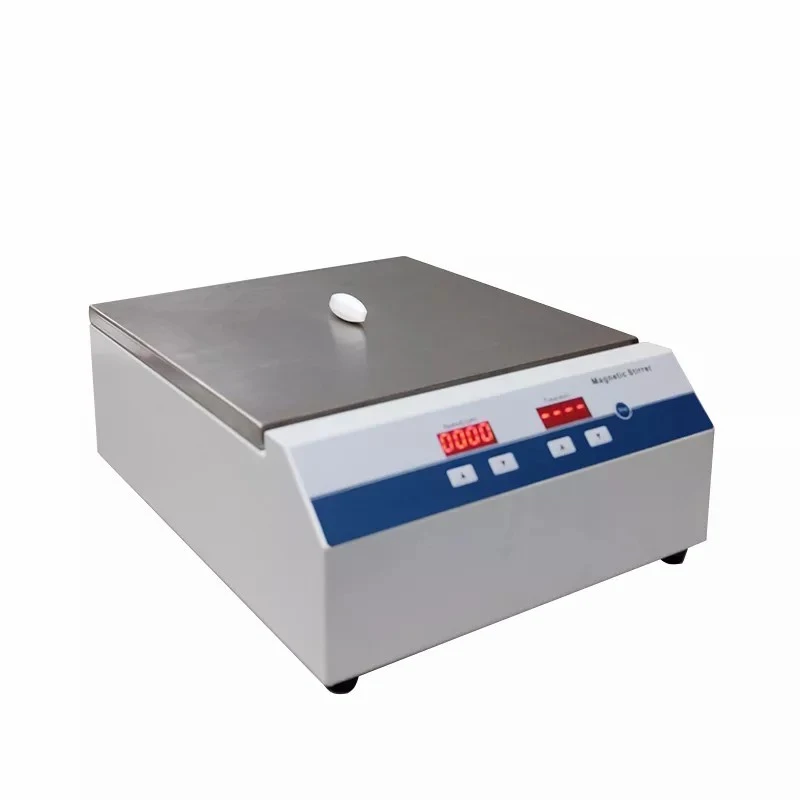

QiweiLab siab- lub zog sib nqus stirrer ib ntus yog tsim los rau kev sim thiab txheej txheem- lub hom phiaj tsim kho uas yuav tsum tau sib nqus sib nqus ntawm cov kua dej loj. Cov khaub ncaws tuaj yeem muaj xws li lub rooj zaum thiab lub laub- hom kev teeb tsa, nrog rau cov dej sib xyaw muaj peev xwm ntawm 1-20 L txog 50-100 L vam khom rau tus qauv.
Thaum xaiv lub siab - muaj peev xwm sib nqus stirrer, xav txog cov kua ntim, viscosity, qhov ntev ntawm lub nkoj, yuav tsum tau sib tov ceev, sib nqus coupling kev ua tau zoo, thiab lub sijhawm ua haujlwm. Qhov siab tshaj plaws muaj peev xwm tso siab rau ntawm cov kua dej nyob thiab ua tib zoo saib ntawm cov xwm txheej, yog li qhov zoo heev mannequin yuav tsum tau xaiv raws li qhov tseeb software hloov dua li ntawm lub nkoj ib leeg.
cov khoom siv thev naus laus zis
Kev Taw Qhia & Txoj Cai
Lub zog hluav taws xob sib nqus stirrer yog cov cuab yeej tshwj xeeb uas tsim los rau kev sib xyaw ua kua, feem ntau yog siv los ua kom qis -cov kua viscosity thiab cov khoom ua kua{1}} cov kua sib tov.
Nws txoj hauv kev ua haujlwm tseem ceeb yog cov hlau nplaum sib txuas uas tsis yog -kev sib cuag tsav. Los ntawm kev sib nqus sib nqus ntawm sab nraud rotating magnetic teb thiab cov stirrer nyob rau hauv lub thawv, tsis yog - kev sib cuag fais fab kis tau tus mob, uas tsis txhob muaj cov ntsaws ruaj ruaj rau qhov teeb meem ntawm tsoos mechanical stirring. Lub tshuab magnetic stirrer siv cov yam ntxwv ntawm tib yam - kev sib deev repulsion ntawm cov khoom sib nqus los txhawb kev sib hloov ntawm cov hlau nplaum sib nqus los ntawm kev hloov pauv cov polarity ntawm ob sab ntawm lub hauv paus.
Loj - ntim sib nqus nplawm yog nyob ntawm qhov ntxiv tshaj qhov tshaj tawm uas tau tshwm sim los ntawm kev siv lub ntsuas. Cov kua ntim, viscosity, qhov ntev ntawm lub nkoj, do bar geometry, thiab hluav taws xob sib nqus sib nqus tag nrho muaj kev cuam tshuam rau seb puas muaj kev ruaj ntseg stirring tuaj yeem tswj tau.
Rau cov hlab ntsha loj, lub dov bar yuav tsum nyob twj ywm ua ke rau qhov ntsuas qhov sib nqus sib nqus nyob rau hauv qab qhov kev xaiv ua haujlwm. Cov viscosity ntau dhau, ib qho tsis haum rau qhov sib tw, lossis qhov tsis zoo ntawm lub nkoj geometry kuj tseem tuaj yeem ua rau kev sib hloov tsis tu ncua, decoupling, lossis tsis tiav.
Muaj nuj nqi
Nws muaj ob txoj haujlwm tseem ceeb ntawm cov kua:
Lub hauv paus ntawm magnetic stirrer generates ib tug ruaj khov thiab adjustable magnetic teb, thiab no magnetic teb yuav siv ib tug nruam txaus nyiam thiab repulsive quab yuam nyob rau hauv lub magnetic do bar muab tso rau hauv cov kua ntim. Nyob rau hauv qhov kev txiav txim ntawm qhov sib nqus quab yuam, lub do bar yuav ua ib tug tsis tu ncua voj voog voj voog nyob rau hauv cov kua. Raws li lub dov bar tig tsis tu ncua, nws yuav tsav cov kua ib puag ncig kom ntws synchronously, yog li txhawb kev sib xyaw ntawm cov khoom sib txawv hauv cov kua, ua rau muaj pes tsawg leeg thiab cov concentration ntawm cov kua sib xws thoob plaws, thiab zam kev tsis sib xws hauv zos uas yuav cuam tshuam rau kev sim.
Lwm txoj haujlwm yog cov cua sov ua haujlwm. Cov cuab yeej tuaj yeem ua kom sov cov kua thaum nplawm, thiab qhov kub siab uas tsim nyog tuaj yeem txo cov viscosity ntawm cov kua, ua kom cov kua molecular txav ceev, thiab ua kom cov txheej txheem sib tov ntawm cov kua ua kom nrawm dua thiab meej dua. Nyob rau tib lub sijhawm, qhov ruaj khov siab - qhov kub thiab txias ib puag ncig kuj tuaj yeem pab tswj kev ruaj khov ntawm cov kua dej, kom ntseeg tau tias cov kua hauv lub xeev tsis sib xws tuaj yeem tswj tau ntev dua.
Technical Parameter
|
Qauv |
QW-DC-24ST |
QW-DC-29ST |
QW-DC-40ST |
QW-DC-6045ST |
|
Khoom nta |
Lub rooj zaum |
Lub tawb nqa khoom -Type |
||
|
Ceev Range |
200 - 1300 rpm |
200 - 1100 rpm |
||
|
Sijhawm Range |
0 - 9999 feeb |
|||
|
Workbench Loj |
240 × 240 hli |
290 × 290 hli |
400 × 400 hli |
600 × 455 hli |
|
Kev sib xyaw muaj peev xwm |
1 - 20 L (dej) |
50 - 100 L (dej) |
50 - 100 L (dej) |
|
|
Workbench Khoom |
304 stainless hlau |
|||
|
Fais fab mov |
220V 50Hz |
|||
|
Loj |
240 × 322 × 90 hli |
290 × 370 × 95 hli |
400 × 500 × 190 hli |
600 × 455 × 240 hli |
|
Ntsuas Qhov hnyav |
4.0kg ib |
6, 0kg |
11.6 kg ib |
31.2kg 3 |
Daim ntawv thov
QiweiLab siab- lub zog sib nqus stirrer sau yog tsim los rau kev sib xyaw ua kua thiab tsim nyog cov khoom siv- ua kua sib tov. Cov qauv kev txiav txim siab yuav tsum suav rau lub cev qhov chaw nyob ntawm cov kua, yuav tsum tau sib tov ntim, nkoj geometry, thiab nyiam sib tov ceev.
Lub hom phiaj muaj peev xwm kuj tseem muaj xws li:
1. Kev npaj cov kev xaiv aqueous hauv cov hlab ntsha loj
2. Dissolving cov khoom ruaj khov uas tsim nyog rau hauv cov kua
3. Kev sib xyaw ua kua hauv qee theem hauv kev tsim kho hauv chav kuaj
4. Kev sib xyaw niaj hnub rau tshuaj lom neeg, ib puag ncig, thiab zoo- tswj kev ua haujlwm
5. Txheej txheem- txhim kho kev kuaj xyuas qhov chaw sib nqus nplawm yog tsim nyog
Rau cov kua dej khov, kev sib xyaw ua haujlwm nyob ntawm viscosity, kub, nkoj geometry, thiab sib nqus coupling. Cov kua uas sib tov tsis muaj teeb meem nyob rau hauv chav tsev kub kuj yuav coj txawv txawv thaum nws viscosity yuav nce los yog thaum ua hauj lwm kom muaj nuj nqis loj.
Sib nqus nplawm kuj yuav tsis yog thawj -chav xaiv xaiv rau txhua qhov tshwj xeeb viscous, tsis yog -Newtonian, lossis muab tshuaj txhuam- zoo li cov khoom siv. Qhov twg muaj zog mechanical shear los yog ntau lub zog yuav tsum tau, ib qho nyiaj siv ua haujlwm ntawm lub tshuab hluav taws xob kuj tseem tsim nyog.
Txhawm rau pab peb xav txog koj daim ntawv thov, thov tso cai rau hom kua, kwv yees li viscosity, lub hom phiaj ntim, qhov ntev ntawm lub nkoj, thiab lub sijhawm sib xyaw.
Qhov cuam tshuam cuam tshuam ntawm Stirrer
Kub, sib nqus teb thiab cov khoom siv hlau yuav cuam tshuam qhov seem hlau nplaum ntawm cov hlau nplaum stirrer, uas yuav cuam tshuam cov nyhuv stirring ntawm magnetic stirrer. Yog li ntawd, nws raug nquahu kom hloov qhov sib nqus stirrer raws sijhawm thiab tsis tu ncua. Los ntawm kev soj ntsuam cov duab ntawm lub stirrer, yog tias muaj kev hnav tseem ceeb, nws yuav tsum tau hloov. Yog tias koj xav tau xyuas qhov sib nqus quab yuam ntawm cov hlau nplaum ruaj khov nyob rau hauv lub stirrer, koj yuav tsum tau siv lub magnetometer los xyuas cov hlau nplaum seem ntawm cov hlau nplaum nplaum.
FAQ
1. Dab tsi yog qhov sib xyaw muaj peev xwm tshaj plaws ntawm QiweiLab siab - lub zog sib nqus stirrer series?
Kev txiav-ntug specs teev cov dej sib tov muaj peev xwm ntawm 1-20 L rau QW-DC-24ST thiab QW-DC-29ST, thiab 50-100 L rau QW-DC-40ST thiab QW-DC-6045ST. Lub peev xwm tiag tiag yog nyob ntawm cov khoom ua kua, lub nkoj geometry, thiab cov hlau nplaum sib txuas. Thov txheeb xyuas qhov tsim nyog rau koj cov nqi hluav taws xob ua ntej kev txiav txim.
2. Cov qauv twg tsim nyog rau kev sib xyaw 50 L lossis ntxiv cov kua?
QW-DC-40ST thiab QW-DC-6045ST muaj npe nrog cov dej sib xyaw ntawm 50-100 L. Qhov kev nyiam zoo tshaj plaws nyob ntawm lub nkoj qhov ntev, qhov chaw ua haujlwm tau zoo, xav tau kev sib tw ceev, thiab cov khoom ua kua zoo. Hu rau peb cov neeg ua haujlwm nrog koj qhov ntsuas lub nkoj thiab lub hom phiaj rau kev xaiv mannequin.
3. Lub siab -lub zog sib nqus stirrer puas tuaj yeem saib xyuas cov kua dej viscosity siab?
Kev sib xyaw tag nrho kev ua tau zoo yog nyob ntawm viscosity, nkoj geometry, do bar tsim, kua ntim, thiab sib nqus sib nqus zog. High-viscosity los yog paste-zoo li cov khoom kuj tseem yuav xav tau cov tshuab hluav taws xob siv hluav taws xob hloov pauv. Thov muab qhov kwv yees viscosity thiab qhov yuav tsum tau ua haujlwm kom thiaj li ntsuas tau qhov siv hluav taws xob.
4. Dab tsi yog lub cev muaj zog torque ntawm lub siab - lub zog sib nqus stirrer?
Lub cev muaj zog torque tam sim no tsis yog tam sim no tshwj xeeb hauv cov ntaub ntawv tshaj tawm cov khoom lag luam. Thov thov tus qauv -cov ntaub ntawv qhia tshwj xeeb los txheeb xyuas cov kev siv lub cev muaj zog thiab txhua qhov kev ua tau zoo ntawm qhov tseeb siv tau rau koj qhov kev sib xyaw ua ke.
5. Lub ntsuas hluav taws xob puas tuaj yeem ua haujlwm tau ntev?
Kev ua haujlwm tsis tu ncua yog nyob ntawm tus qauv tsim lub cev muaj zog, kev tswj xyuas thermal, cov xwm txheej thauj khoom, thiab cov chaw tsim khoom- pom zoo txwv kev ua haujlwm. Thov lees paub qhov kev lees paub ua haujlwm ntev thiab kev kho dua tshiab lossis kev ua kom txias ua ntej siv cov cuab yeej rau kev sib xyaw ua ke ntev.
6. Dab tsi yog qhov txawv ntawm lub rooj zaum thiab lub laub- hom qauv?

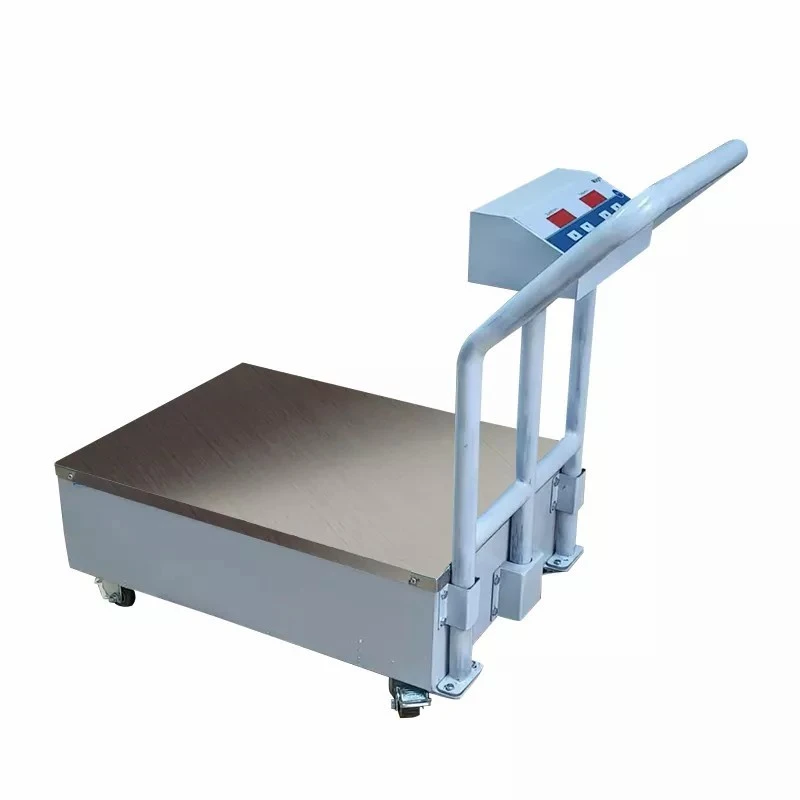

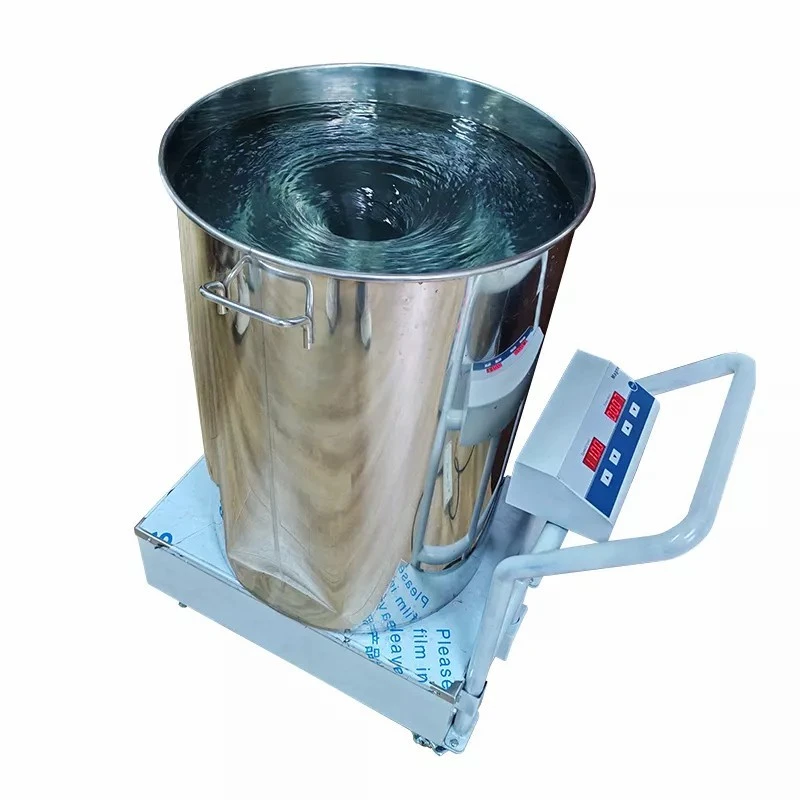

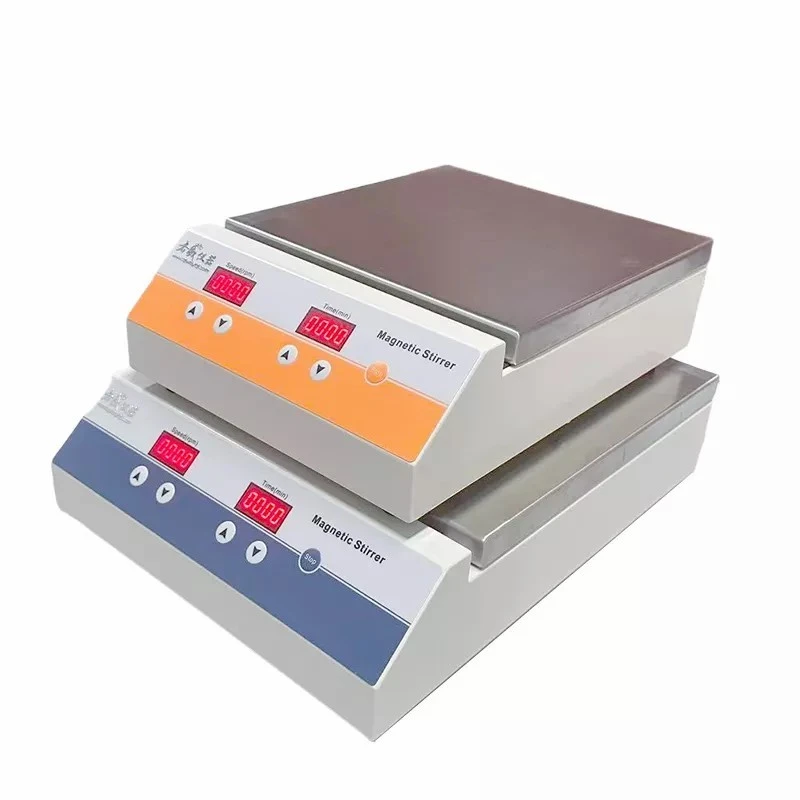

QW-DC-24ST, QW-DC-29ST, thiab QW-DC-40ST tau teev tseg raws li cov qauv hauv qab, thaum QW-DC-6045ST tau teev tseg raws li hom tsheb thauj khoom. Lawv workbench qhov ntev thiab pace tiers txawv. Xaiv qhov kev teeb tsa raws li lub nkoj hneev taw, ncav cuag qhov chaw ua haujlwm, thiab qhov xav tau sib tov ntim.
7. Cov ntaub ntawv dab tsi xav tau los xaiv lub tshuab nqus hlau nplaum rau lub nkoj loj?
Thov muab lub hom phiaj ua kua ntim, kwv yees li viscosity, qhov ntev ntawm lub nkoj, cov kua qhov tob, yuav tsum tau ua kom nrawm nrawm, xav txog lub sijhawm ua haujlwm, thiab cov qauv qauv. Cov ntawv me me no pab peb cov neeg ua haujlwm xav txog cov mannequin thiab pom tau tias muaj kev tshwj xeeb ntxiv uas xav kom paub tseeb.
8. Kuv puas tuaj yeem thov daim ntawv pov thawj rau kev yuav khoom ntau lossis ib qhov kev sib xyaw ua ke?
Yog lawm. Hu rau QiweiLab nrog koj lub hom phiaj ntim, cov khoom ua kua, qhov ntev ntawm lub nkoj, qhov xav tau kom muaj nuj nqis, lub teb chaws so, thiab cov ntsiab lus siv hluav taws xob. Peb pab pawg tuaj yeem saib xyuas cov mannequin specs uas tuaj yeem ncav cuag thiab muab cov ntaub ntawv siv tau los siv.
