Hangzhou Qiwei Instrument Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm portable multi - parameter cupric ion concentration meter hauv Suav teb. Nrog ib pab neeg tsim khoom, peb muaj peev xwm ua tau raws li qhov xav tau ntawm feem ntau ntawm peb cov neeg siv khoom. Txais tos rau cov lag luam wholesale bulk portable multi- parameter cupric ion concentration meter hauv Tshuag ntawm no los ntawm peb lub hoobkas. Peb kuj txais customized txiav txim.
Lub hom phiaj ntawm lub portable tooj liab ion analyzer yog ntsuas cov tooj liab ions yaj (Cu2+) hauv cov dej khib nyiab, cov qauv dej hauv kev lag luam, thiab cov kev daws teeb meem raws li kev siv tshwj xeeb.
Lub ntsuas tooj liab ion siv tooj liab ion xaiv electrode (Cu ISE) los ntsuas cov tooj liab ion concentration ncaj qha, sib piv rau cov dej ib txwm muaj-cov ntsuas dej zoo uas muaj cov ntsuas tsis ncaj xws li kev coj ua lossis tag nrho cov khoom yaj.
Cov kws kho mob tuaj yeem tshawb xyuas tooj liab nyob ze rau qhov chaw ua piv txwv ua tsaug rau cov qauv tsim, suav nrog:
Cov dej khib nyiab electroplating
1.PCB chaw tsim khoom
2.Industries uas txheej txheem hlau
3.Qhov chaw rau mining thiab ua cov ntxhia
4.Kev tshuaj xyuas qhov chaw rau cov dej khib nyiab
Cov neeg ua haujlwm tuaj yeem soj ntsuam cov kev hloov pauv ntawm tooj liab concentration thaum lub sijhawm kho cov txheej txheem, kev tshuaj xyuas ntau lawm, thiab kev tshuaj xyuas ib puag ncig nrog kev pab cuam ncaj qha Cu2+ntsuas.
cov khoom siv thev naus laus zis

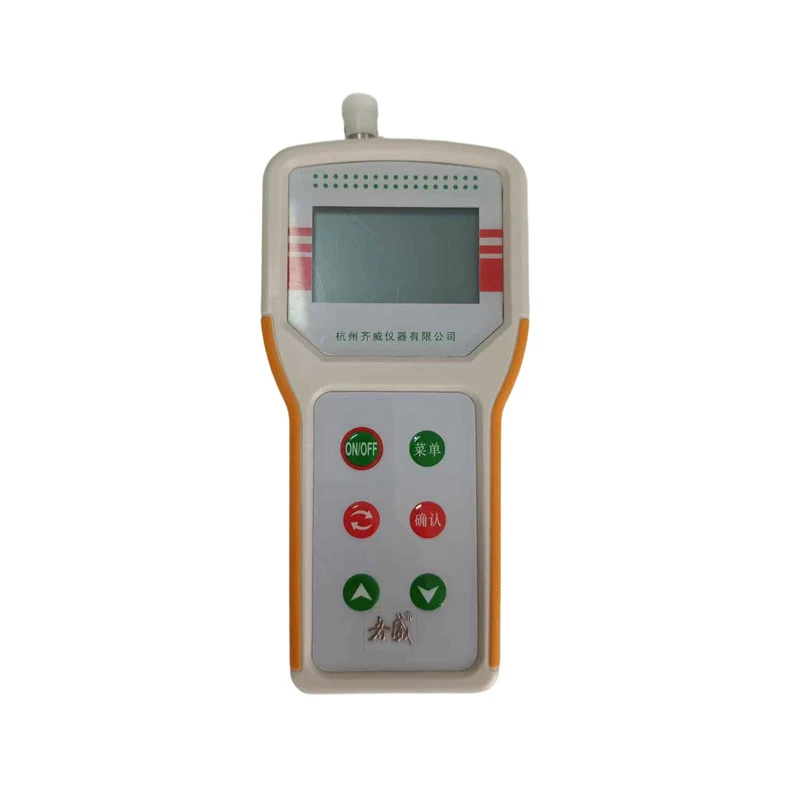

Qhov no portable multi-parameter cupric ion concentration meter yog ib qho chaw ntsuas me me uas tau tsim los rau kev soj ntsuam sai ntawm cov ntsiab lus tooj liab ionic hauv cov qauv aqueous, zoo sib xws nrog ntau hom kev saib xyuas sab nraum zoov. Txais yuav ib qho kev sib xyaw ua ke slim chassis qauv, lub cuab yeej muab ergonomic tuav kev paub thiab zoo heev portability. Kev ywj pheej ntawm cov chaw ua haujlwm nyob ruaj ruaj, lub tsev tuaj yeem thauj tau dawb los qhib- chaw ua haujlwm huab cua los ntawm cov kws tshaj lij rau ntawm - qhov chaw ntsuas. Nws txhawb nqa ntau yam kev tshuaj ntsuam xyuas, suav nrog kev sau cov qauv hauv teb, kev ntsuas dej ntsuas thiab ntsuas tam sim ntawm - tshuaj ntsuam xyuas qhov chaw.
Txoj Cai Ua Haujlwm
Cov cuab yeej tshuaj ntsuam xyuas no ua qhov kev kuaj pom ntau raws li ion- xaiv electrode (ISE) txoj cai. Nws cov ntsiab lus tseem ceeb yog ib qho tooj liab ion- tshwj xeeb electrode txais yuav ib qho khoom siv - xeev membrane qauv. Cov zaj duab xis teb yog tsim los ntawm dej -insoluble cupric sulfide thiab nyiaj sulfide cov ntaub ntawv uas nyob ruaj khov nyob rau hauv kev sim aqueous media. Thaum qhov kev sojntsuam sojntsuam yog submerged nyob rau hauv cov qauv kev daws teeb meem, ib qho hluav taws xob muaj peev xwm gradient cov ntaub ntawv ntawm daim nyias nyias, uas sib haum rau cov kev ua tau zoo thiab cov concentration ntawm tooj liab ions hauv cov kua nruab nrab. Qhov kev hloov hluav taws xob no tswj cov kab logarithmic kev sib raug zoo nrog cov ntsiab lus cupric ion, ua raws li Nernst theoretical equation classic. Nruab nrog ib qho ua tau - nyob rau hauv siab - qhov tseeb potentiometric sensor, lub cuab yeej ntes qhov sib txawv me me ntawm lub sijhawm. Ua ke nrog kev khaws cia calibration curves thiab optimized computational algorithms, tus ntaus ntawv sai sai xam thiab outputs raug tooj liab ion concentration cov ntaub ntawv ntawm cov qauv kuaj.
Copper Ion Field Inspection Workflow
Cov txheej txheem pom zoo rau kev ntsuas kev lag luam tooj liab:
Kauj Ruam 1: Sampling
Sau ib qho piv txwv ntawm cov txheej txheem los yog cov dej khib nyiab.
Kauj Ruam 2: Npaj Cov Qauv
Sib sau cov qauv raws li cov txheej txheem kev sim xaiv.
Kauj Ruam 3: Kev txheeb xyuas ntawm Calibration
Txheeb xyuas qhov xwm txheej calibration ntawm Cu2+electrode.
Kauj Ruam 4: Kev ntsuas
Tom qab muab cov electrode tso rau hauv cov qauv, saib rau kev nyeem ntawv tsis tu ncua.
Kauj ruam 5: Sau cov ntaub ntawv
Txuag cov ntaub ntawv ntsuas ua ke nrog cov txiaj ntsig ntawm tooj liab concentration.
Kauj ruam 6: Exporting cov ntaub ntawv
Thaum tsim nyog, txav cov ntaub ntawv khaws cia rau hauv PC rau kev tshaj tawm.
Cov txheej txheem tshuaj xyuas tsis tu ncua ntawm cov chaw kho dej khib nyiab, chaw tsim khoom lag luam, thiab cov nroj tsuag electroplating tau txais kev txhawb nqa los ntawm cov haujlwm no.
Kev ua haujlwm
|
Ambient Kub |
(5 ~ 40) degree |
|
txheeb ze humidity |
Tsawg dua los yog sib npaug li 80% |
|
Fais fab mov |
4 × AAA alkaline roj teeb |
|
Kev cuam tshuam |
Tsis muaj kev cuam tshuam los ntawm lwm qhov chaw sib nqus tsuas yog lub ntiaj teb magnetic teb |
|
Kev vibration |
Tsis muaj kev vibration tseem ceeb |
Industrial Field Protection Design rau Copper Ion Testing
Acidic wastewater, tshuaj residues, thiab cov txheej txheem caustic kua yog cov piv txwv ntawm cov qauv kev lag luam uas muaj tooj liab.
Cov kev sim configuration rau industrial teb daim ntaub ntawv yuav tsum coj mus rau hauv tus account:
1. Cov khoom siv tshuaj lom neeg - tiv taus electrodes
2. Kev npaj ua qauv tsim nyog
3.Cov txheej txheem rau tu electrodes
4.Configuration ntawm kev tiv thaiv nqa cov ntaub ntawv
5.Operating yam xyuam xim nyob ze rau qhov chaw ua piv txwv
Qee qhov kev pom zoo hauv teb tuaj yeem yog:
1.Txoj kev nqa khoom nqa
2.Standards rau calibration
3.Container rau khaws cov electrodes
4.Accessories rau cov qauv npaj
5. Tus neeg saib xyuas huv
Thaum siv cov cuab yeej siv hauv cov chaw tsim khoom hnyav, kev tiv thaiv tsim nyog yuav pab kom ntsuas qhov sib xws.
Technical parameter
|
Qauv |
BXS-Cu |
|
Kev ntsuas ntau |
pCu: (3.00-7.00)pCu; Cu2+6.35g / L-63.5g / L; mV: (-1800-1800)mV |
|
Kev daws teeb meem |
0,01p qw |
|
Basic yuam kev ntawm Electronic Unit |
± 0.02pCu ± 1 lo lus |
|
Instrument Basic yuam kev |
± 0.05 pCu |
|
Kev xam yuam kev |
±0.3% |
|
Repeatability yuam kev |
Tsawg dua lossis sib npaug ± 0.03pCu ± 1 lo lus |
|
Stability ntawm Electronic Unit |
± 0.02pCu / 3h |
|
Temperature Compensation Range |
(5.0-50.0) qib |
|
Loj |
80 × 85 × 30mm |
|
Qhov hnyav |
1 KG |
FAQ
1.Dab tsi yog ntsuas los ntawm tooj liab ion meter?
Siv cov tooj liab ion xaiv electrode, tooj liab ion meter txiav txim siab npaum li cas ntawm cov tooj liab ions yaj (Cu2+) hauv cov qauv ua kua.
2.Puas ntsuas tooj liab ions zoo ib yam li ntsuas tag nrho cov tooj liab?
Tsis yog. Qhov kev ua txhaum Cu2+ yog qhov tseem ceeb ntawm kev saib xyuas tooj liab ion. Nyob ntawm seb hom qauv, kev zom zaub mov ntxiv lossis kev kuaj sim yuav xav tau rau tag nrho cov tooj liab tsom.
3.Nws puas tuaj yeem siv electroplate cov dej khib nyiab siv qhov ntsuas no?
Tseeb tiag. Cov ntawv thov cuam tshuam nrog electroplating yog ntawm cov txheej txheem tshuaj xyuas dej khib nyiab uas tuaj yeem tau txais txiaj ntsig los ntawm kev ntsuas tooj liab ion portable.
4.Nws puas muaj peev xwm ntsuas PCB etching daws?
Tseeb tiag. Kev ntsuam xyuas ntawm tooj liab- muaj cov kev daws teeb meem thiab kev tswj cov txheej txheem PCB tuaj yeem pab tau los ntawm kev saib xyuas tooj liab ion.
5.Vim li cas calibration tseem ceeb heev thaum ntsuas tooj liab ions?
Kev sib txuas ntawm electrode teb thiab cov ntsiab lus tooj liab yog tsim los ntawm calibration. Kev ntsuas qhov tseeb thoob plaws ntau qhov sib txawv tuaj yeem txhim kho los ntawm kev siv ntau qhov chaw calibration.
6.Yuav ua li cas cov tooj liab ion electrode yuav tsum tau khaws cia nyob rau hauv zoo?
Tom qab siv, yaug lub electrode kom tsis txhob muaj kab mob, khaws cia raws li cov khoom siv electrode, thiab rov kho dua yog tias kev ntsuas kev hloov pauv.
